Gas hob DPE7610FM

Fascination
Collection

All of the brand’s expertise and craftsmanship is embodied in this enamelled steel hob, giving you greater efficiency, user comfort and convenience: pan supports with anti-slip feet, integrated ignition, a thermocouple gas safety cut off system for each burner, a temperature limiter on the electric hotplate and more.

colors

zoom

compare

Add this product to my favourites

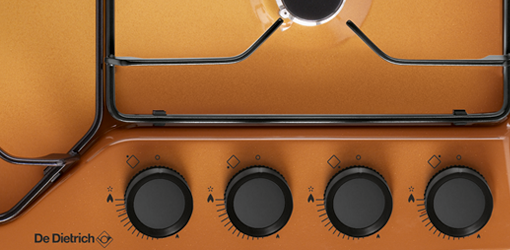

Ergonomically-Designed Knobs

All knobs have been specially designed to offer the highest levels of ease and comfort during use. Adjusting the heat of the burners is an easy and accurate process.

Gas Cooking in Complete Safety

A thermocouple safety system is located against each burner, which activates as soon as you touch the controller to ignite it. If necessary, this thermocouple instantly and automatically cuts off the gas supply to prevent any leakages occurring should the flame accidentally be extinguished.

Download :

Notice_DPE7610FM.pdf (2 Mo)

Main Specifications

Hob type:

Mixed gas / electric

Width (cm):

Energy:

Mixed gas / electric

Cooking zones

Number of zones:

Heating element location:

Front Left

Heating element location N°2:

Rear left

Heating element location N°3:

Front right

Heating element location N°4:

Rear right

Type of heating element :

Gas

Type of heating element N°2:

Electric

Type of heating element N°3:

Gas

Type of heating element N°4:

Gas

Dimensions of the heating element (mm):

Large rapid

Dimensions of the heating element N°2 (mm):

145 with limitor

Dimensions of the heating element N°3 (mm):

Auxiliary

Dimensions of the heating element N°4 (mm):

Rapid

Maxi power for heater (W):

3100

Maxi power for heater (W) N°2:

1500

Maxi power for heater (W) N°3:

850

Maxi power for heater (W) N°4:

2400

Control panel

Type of control:

Knob

Type of energy regulation:

Tap with safety

Timer:

Ignition system:

Integrated

Electric Connections

Hob max electric power input (KW):

1.5

Current (A):

Voltage (V):

220-240

Frequency (Hz):

Length electrical supply cord (cm):

100

Plug type:

Without

Gas Connections

Hob maximum gaz power input (kW):

6.35

Factory Setting Gas Type:

Natural 20 mbar

Others gas possibilities:

Butane / Propane

Delivered injectors:

Injector wrench;Butane gas injectors set 29 mbar

Safety devices

Power Indicator:

Yes

Residual heat Indicators:

Without

Central locking:

Top Gas Safety Device:

Burner gas safety

Certificates of approval:

EEC

Dimensions

Dimensions of the packed product HxWxD (mm):

145X670X600

Built in dimensions WxD (mm):

560X490

Overall dimensions above the working surface HxWxD (mm):

49X580X522

Dimensions under worktop HxWxD (mm):

34x558x475

Net weight (kg):

8.9

Gross weight (kg):

9.8
