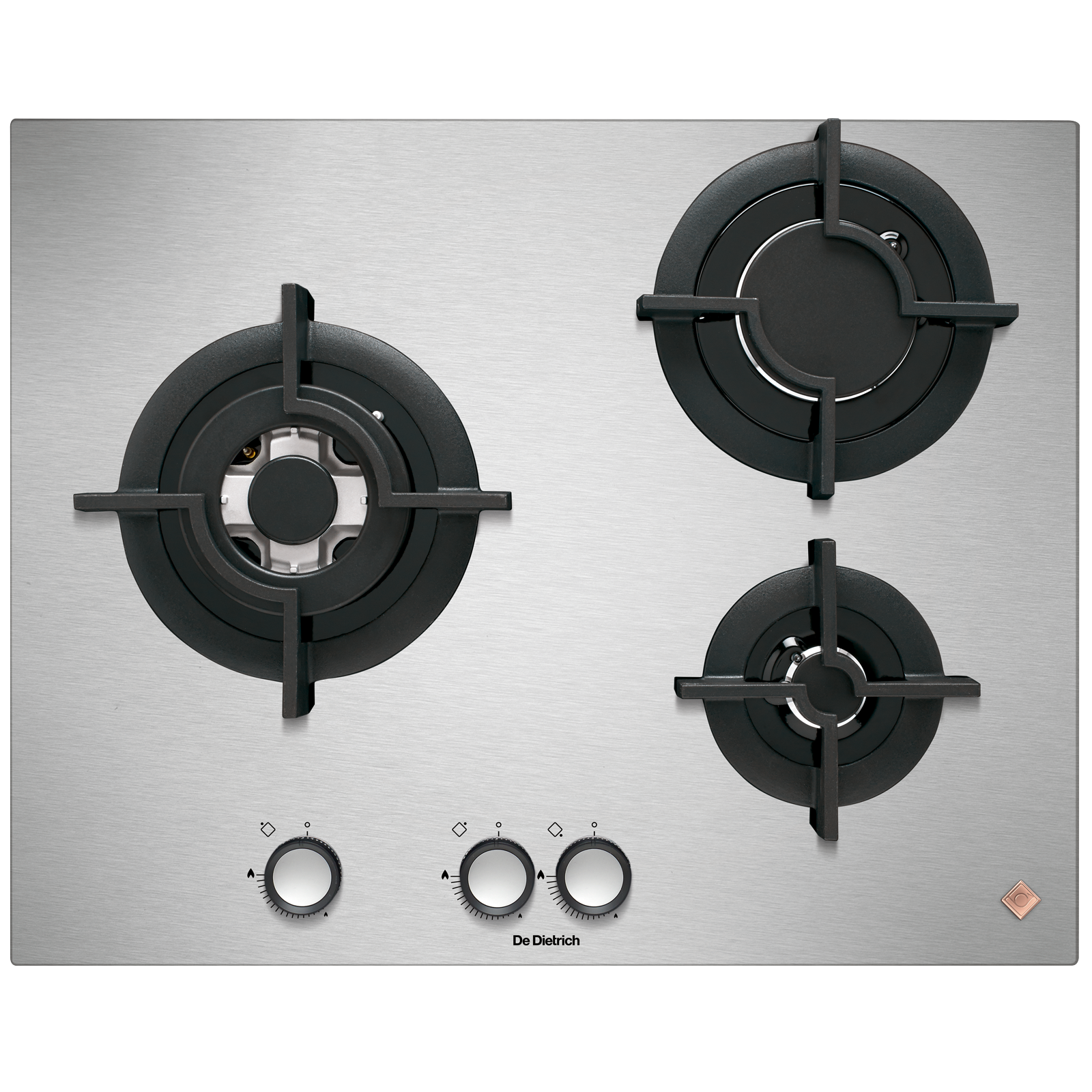

Gas hob DPE7549XF

Fascination
Collection

This three-burner gas hob sits flush with your cooking surface, lending your kitchen a satisfyingly functional feel. Its prized stainless steel surface can be wiped clean with a sponge once the three grills and burners are removed, and will retain both its high-quality performance and shine for years to come.

colors

zoom

compare

Add this product to my favourites

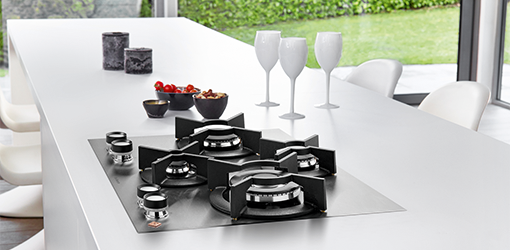

“Flat” Hob - Restyled Cooking Areas

Redesigned to provide maximum comfort and convenience during use. With 3 gas burners arranged in a diamond shape, maximum use can be made of the space, with both small and large pans easily accommodated. The perfectly flat, polished surface can be installed perfectly fl ush with the work surface.

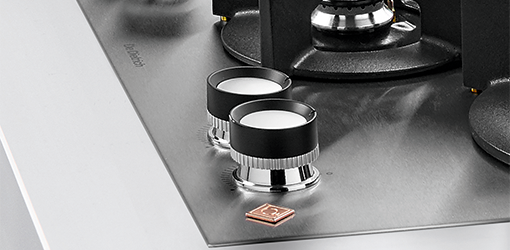

Ergonomically-Designed Knobs

All knobs have been specially designed to offer the highest levels of ease and comfort during use. Adjusting the heat of the burners is an easy and accurate process.

Gas Cooking in Complete Safety

A thermocouple safety system is located against each burner, which activates as soon as you touch the controller to ignite it. If necessary, this thermocouple instantly and automatically cuts off the gas supply to prevent any leakages occurring should the flame accidentally be extinguished.

Download :


Notice_DPE7549XF.pdf (4 Mo)

Main Specifications

Hob type:

Gas

Width (cm):

Energy:

Gas

Cooking zones

Number of zones:

Heating element location:

Center left

Heating element location N°2:

Front right

Heating element location N°3:

Rear right

Type of heating element :

Gas

Type of heating element N°2:

Gas

Type of heating element N°3:

Gas

Dimensions of the heating element (mm):

Triple ring

Dimensions of the heating element N°2 (mm):

Auxiliary

Dimensions of the heating element N°3 (mm):

Large rapid

Maxi power for heater (W):

3800

Maxi power for heater (W) N°2:

850

Maxi power for heater (W) N°3:

3100

Timer:

Without timer

Timer N°2:

Without timer

Timer N°3:

Without timer

Control panel

Type of control:

Knob

Type of energy regulation:

Tap with safety

Timer:

Without timer

Ignition system:

Integrated

Electric Connections

Current (A):

Voltage (V):

220-240

Frequency (Hz):

Length electrical supply cord (cm):

Plug type:

Without

Gas Connections

Hob maximum gaz power input (kW):

7.75

Factory Setting Gas Type:

Natural 20 mbar

Others gas possibilities:

Butane / Propane

Delivered injectors:

Injector wrench;Butane gas injectors set 29 mbar

Safety devices

Power Indicator:

Top Gas Safety Device:

Burner gas safety

Certificates of approval:

EEC

Dimensions

Dimensions of the packed product HxWxD (mm):

170X860X600

Built in dimensions WxD (mm):

560X490

Overall dimensions above the working surface HxWxD (mm):

61X610X520

Dimensions under worktop HxWxD (mm):

50X553X476

Net weight (kg):

9.5

Gross weight (kg):

10.6
