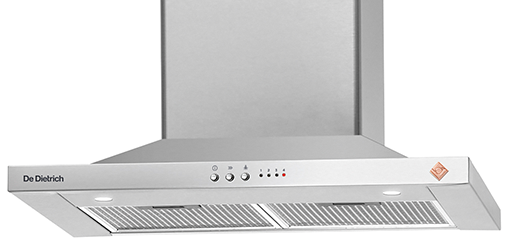

Wall decorative hood DHP7612X

Fascination
Collection

Available in both 60 cm and 90 cm models, this decorative wall-mounted hood can work at twice the efficiency during periods of intense cooking thanks to the Boost function which allows you to reach maximum suction power right away.

colors

zoom

compare

Add this product to my favourites

LED Lighting - The Greatest Respect for the Environment

This lighting method stands out as consuming almost 85% less electricity and lasting 20 times as long as an incandescent bulb. The system both efficiently illuminates all the pans on your hob and provides you with soft mood lighting that is ideal for over dinner.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Fiche_produit_EU_DHP7612X_en.pdf (24 Ko)


Notice_DHP7612X.pdf (779 Ko)

Etiquette_Energie_Label_DHP7612X.pdf (203 Ko)

Main Specifications

Type of hoods:

Wall decorative hood

Output air extraction (m3/h):

555

Width (cm):

Control panel

Type of control:

Continuous

Boost position:

Without

Lighting

Number of lights:

Light position:

Front

Type of bulb:

Led

Total brightness in Lux:

459

Lighting power (W):

2.0

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

45.6

Max recycling air extraction (m3/h):

520

Boost position output recirculating (m3/h):

630

Boost position air extraction (m3/h):

710

Minimum evacuation sound level (dBA):

45.6

Max evacuation sound level (dBA):

66.8

Filtering

Number of filters:

No-return airflow clap:

Yes

Optional accessories:

Characoal filter

Dimensions

Height of product without chimmey (mm):

100

Dimensions of product HxWxD (mm):

600X500X100

Height of chimmey min/max (mm):

669/1021

Dimensions of the packed product HxWxD (mm):

595X645X390

Gross weight (kg):

13,5

Net weight (kg):

10.9

Connections

Voltage (V):

220-240

Frequency (Hz):

50-60

Current (A):

Connection rating (W):

269.0
