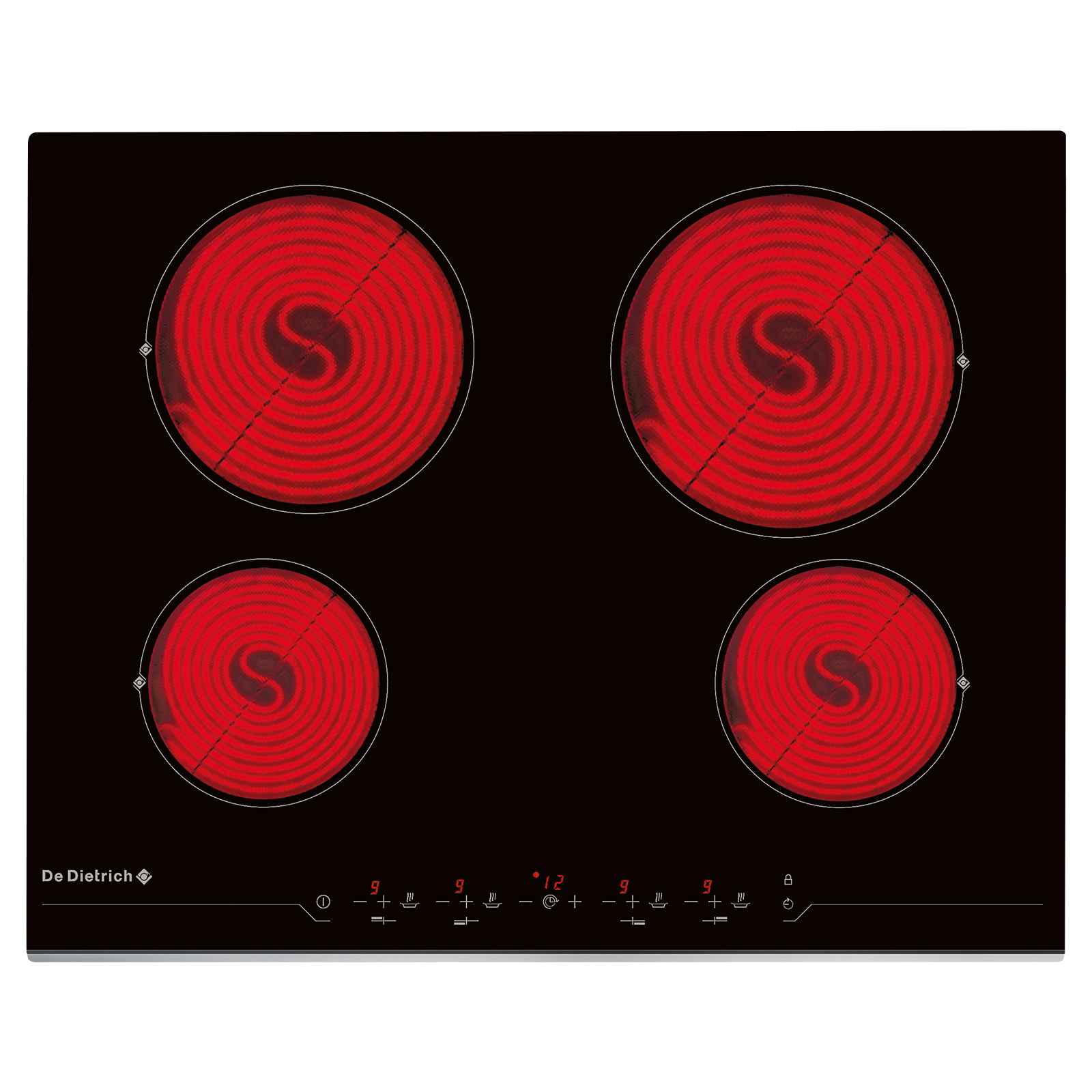

Vitroceramic hob DTV1120X

Fascination
Collection

All it takes to select your desired power level from the 17 settings available or adjust the heat of the zones is a simple touch of your fingers on the sensitive keypad of this vitro-ceramic hob. Immediately get up to maximum heat with the Boost function and precisely programme your cooking times with a separate 1-99 minute timer for each zone.

colors

zoom

compare

Add this product to my favourites

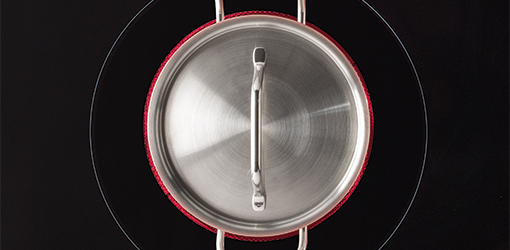

High-Performance Speedring Radiant Zones

From the most intense cooking to the gentlest simmer, Speedring radiant zones ensure a constantly even distribution of heat, helping you to cook dishes that require long simmering, or bring large volumes of liquid rapidly up to the boil.

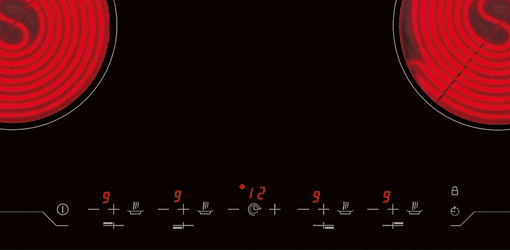

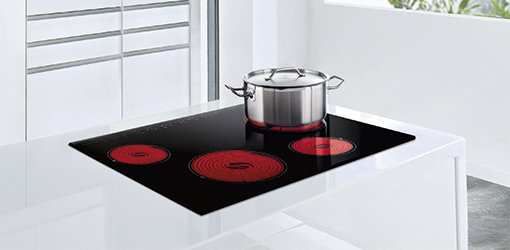

Touch-Sensitive Commands for Each Cooking Zone

These remain visible and easy to read even when multiple dishes are being cooked at the same time, with all power and time indicators displayed at once.

17 Different Cooking Positions

These allow for a wide range of power adjustments, and making temperature selections is quick and easy thanks to two direct access keys. Finally, a separate electronic timer is provided for each zone for a greater degree of accuracy.

Safety: A De Dietrich Guiding Principle

An Anti-Overspill safety feature automatically turns the hob off in the event of any spillages. An Automatic-Stop System turns the hob off if you leave a dish alone for an extended period of time.

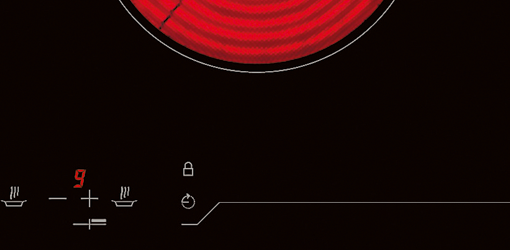

Residual Heat Indicators

They are displayed while the surface temperature remains above 60°C. A Keyboard Lock feature: it prevents the hob being turned on accidentally.

Download :


Notice_DTV1120X.pdf (602 Ko)

Main Specifications

Hob type:

Vitrocéramique

Width (cm):

Energy:

Electricité

Cooking zones

Number of zones:

Heating element location:

Avant Gauche

Heating element location N°2:

Arrière Gauche

Heating element location N°3:

Avant Droit

Heating element location N°4:

Arrière Droit

Type of heating element :

Radiant

Type of heating element N°2:

Radiant

Type of heating element N°3:

Radiant

Type of heating element N°4:

Radiant

Dimensions of the heating element (mm):

165

Dimensions of the heating element N°2 (mm):

215

Dimensions of the heating element N°3 (mm):

165

Dimensions of the heating element N°4 (mm):

230

Maxi power for heater (W):

1200

Maxi power for heater (W) N°2:

2000

Maxi power for heater (W) N°3:

1200

Maxi power for heater (W) N°4:

2500

Timer:

Sélection de la minuterie sur les 4 foyers;Indépendante

Timer N°2:

Sélection de la minuterie sur les 4 foyers;Indépendante

Timer N°3:

Sélection de la minuterie sur les 4 foyers;Indépendante

Timer N°4:

Sélection de la minuterie sur les 4 foyers;Indépendante

Power Indicator N°4:

0 fixé dans afficheur

Control panel

Type of control:

Touches sensitives

Type of energy regulation:

Electronique

Timer:

Electronique 99mn

Electric Connections

Hob max electric power input (KW):

6.9

Current (A):

Voltage (V):

220-240

Frequency (Hz):

Length electrical supply cord (cm):

150

Plug type:

Sans

Safety devices

Power Indicator:

0 fixé dans afficheur

Residual heat Indicators:

H clignotant dans l'afficheur

Central locking:

Oui

Securities devices:

Pack 5 sécurités

Certificates of approval:

Dimensions

Dimensions of the packed product HxWxD (mm):

135X750X600

Built in dimensions WxD (mm):

560X490

Overall dimensions above the working surface HxWxD (mm):

9X650X520

Dimensions under worktop HxWxD (mm):

37X555X488

Net weight (kg):

8,68

Gross weight (kg):

9,68
