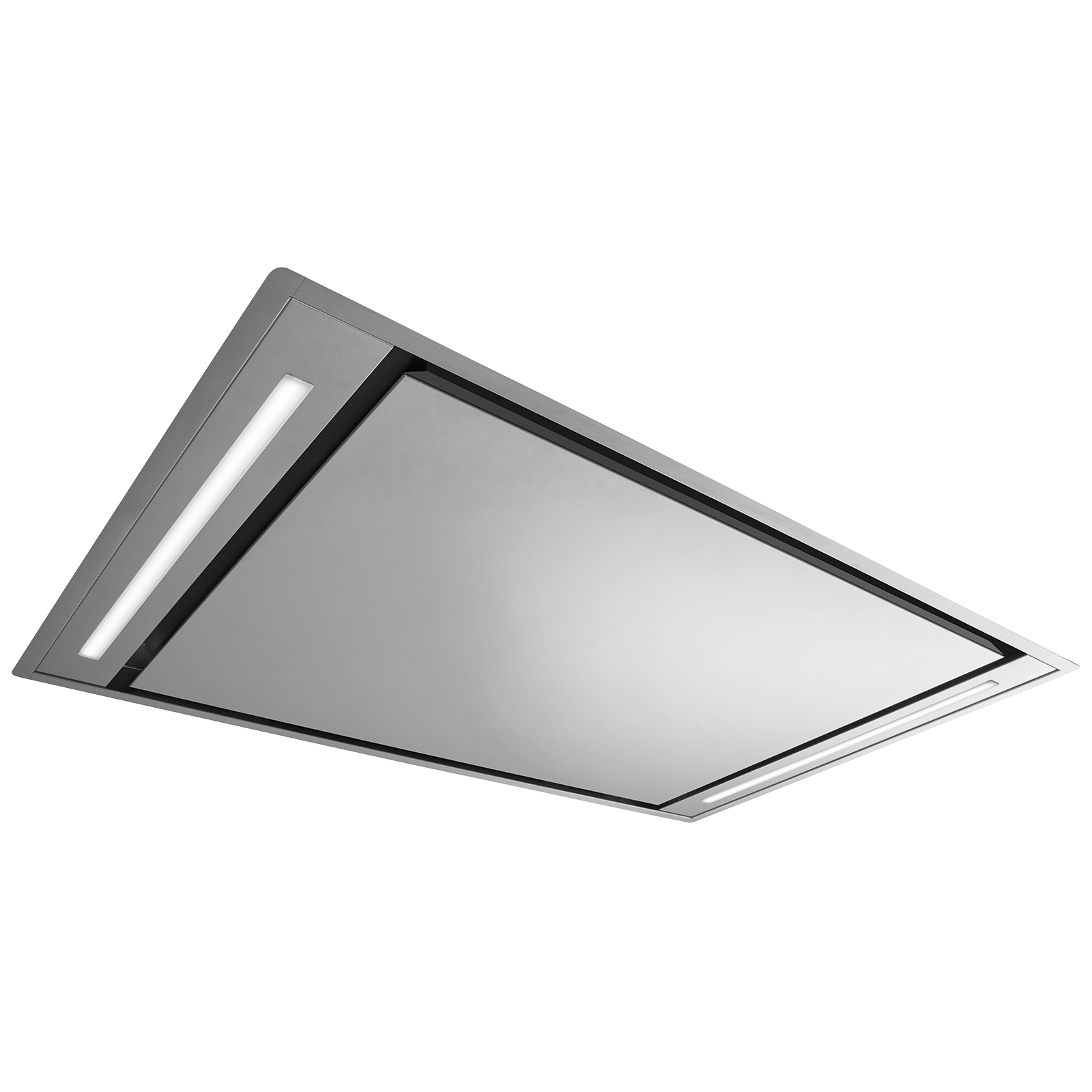

Ceiling hood DHL7173X

Fascination
Collection

De Dietrich breathes a breath of fresh air into your kitchen, ushering you towards this new way of living. Subtly integrated into the ceiling or an island unit above the hob, its large physical size is matched only by its abilities. Operated by remote control, not only does this ceiling hood illuminate your culinary creations, but also responds quickly and effortlessly to your instructions.

colors

zoom

Where to buy ?

compare

Add this product to my favourites

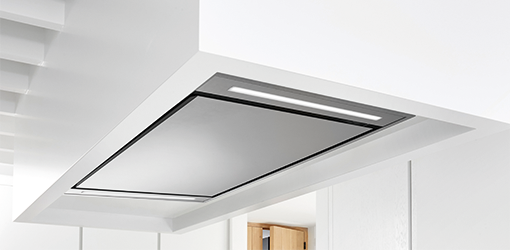

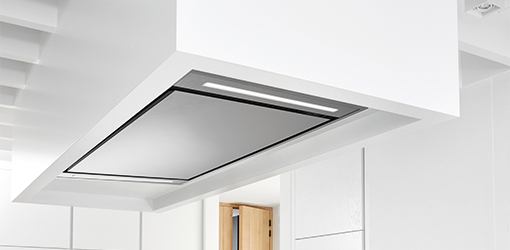

Shedding New Light on the Concept of Well-Being

The new hood blends seamlessly into the ceiling, drawing air in with both power and discretion. Its large physical size is matched by its abilities. Operated by remote control, this extractor hood also provides you with mood lighting.

LED Lighting - The Greatest Respect for the Environment

This lighting method stands out as consuming almost 85% less electricity and lasting 20 times as long as an incandescent bulb. The system both efficiently illuminates all the pans on your hob and provides you with soft mood lighting that is ideal for over dinner.

Delayed Stop Function

This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Fiche_produit_EU_DHL7173X_en.pdf (24 Ko)


Notice_DHL7173X.pdf (3 Mo)

Etiquette_Energie_Label_DHL7173X.pdf (37 Ko)

Main Specifications

Type of hoods:

Ceiling hood

Output air extraction (m3/h):

630

Control panel

Type of control:

Electronic

Boost position:

Without

Lighting

Number of lights:

Light position:

Right;Under;Left

Type of bulb:

Led

Lighting power (W):

10.5

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

Max recycling air extraction (m3/h):

542

Boost position output recirculating (m3/h):

724

Boost position air extraction (m3/h):

915

Minimum evacuation sound level (dBA):

50.5

Max evacuation sound level (dBA):

Filtering

Number of filters:

No-return airflow clap:

Accessories:

Characoal filter

Dimensions

Height of product without chimmey (mm):

290

Dimensions of product HxWxD (mm):

290X1100X700

Dimensions of the niche HxWxD (mm):

440X1080X680

Dimensions of the packed product HxWxD (mm):

400X1320X940

Gross weight (kg):

Net weight (kg):

Connections

Voltage (V):

220-240

Frequency (Hz):

50/60

Current (A):

Connection rating (W):

296
