Built-in hood DHE1136A

Fascination
Collection

As with the entire De Dietrich Collection, this retractable extractor hood provides a perfect combination of discretion, performance and functionality. In order to totally eradicate any residual post-cooking odours or vapours, this retractable extractor hood operates for an extra ten minutes at the last speed selected once you finish cooking , then turns itself off automatically.

colors

zoom

compare

Add this product to my favourites

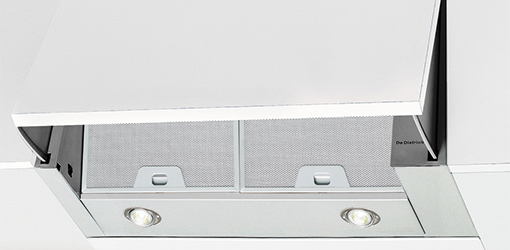

The Utmost Discretion

This retractable hood is installed in place of a wall cabinet above the hob. It is fronted with a decorative door that is matched to other kitchen units and provides easy access to all electronic controls for turning on the extractor or activating the lights when opened.

Saturation Indicator for Grease and Carbon Filters

In order to ensure the hood works at maximum effi ciency, we recommend that grease fi lters are cleaned and the carbon fi lter is changed regularly. This warning light illuminates when grease has built up on the fi lters and they need cleaning or replacing.

Delayed Stop Function

This system has been designed to totally eradicate any residual postcooking vapours. The hood continues to function for ten minutes after the last speed is selected, then turns itself off automatically.

Boost Function

When selected, this feature immediately sets the hood to work at maximum extraction speed for even greater efficiency when large amounts of vapour or cooking aromas are present.

Download :

Fiche_produit_EU_DHE1136A_en.pdf (23 Ko)


Notice_DHE1136A.pdf (2 Mo)

Etiquette_Energie_Label_DHE1136A.pdf (75 Ko)

Main Specifications

Type of hoods:

Integrated hood

Output air extraction (m3/h):

550

Width (cm):

Control panel

Type of control:

Electronic

Boost position:

With

Lighting

Number of lights:

Light position:

Rear

Type of bulb:

Halogen

Lighting power (W):

Performances

Number of speed positions:

Acoustic power level (recycling) (dBA):

Boost position air extraction (m3/h):

670

Filtering

No-return airflow clap:

Yes

Optional accessories:

Characoal filter

Dimensions

Height of product without chimmey (mm):

450

Dimensions of product HxWxD (mm):

450X598X265

Dimensions of the packed product HxWxD (mm):

540X680X350

Gross weight (kg):

14,92

Net weight (kg):

Connections

Voltage (V):

220-240

Frequency (Hz):

50/60

Current (A):

Connection rating (W):

290
