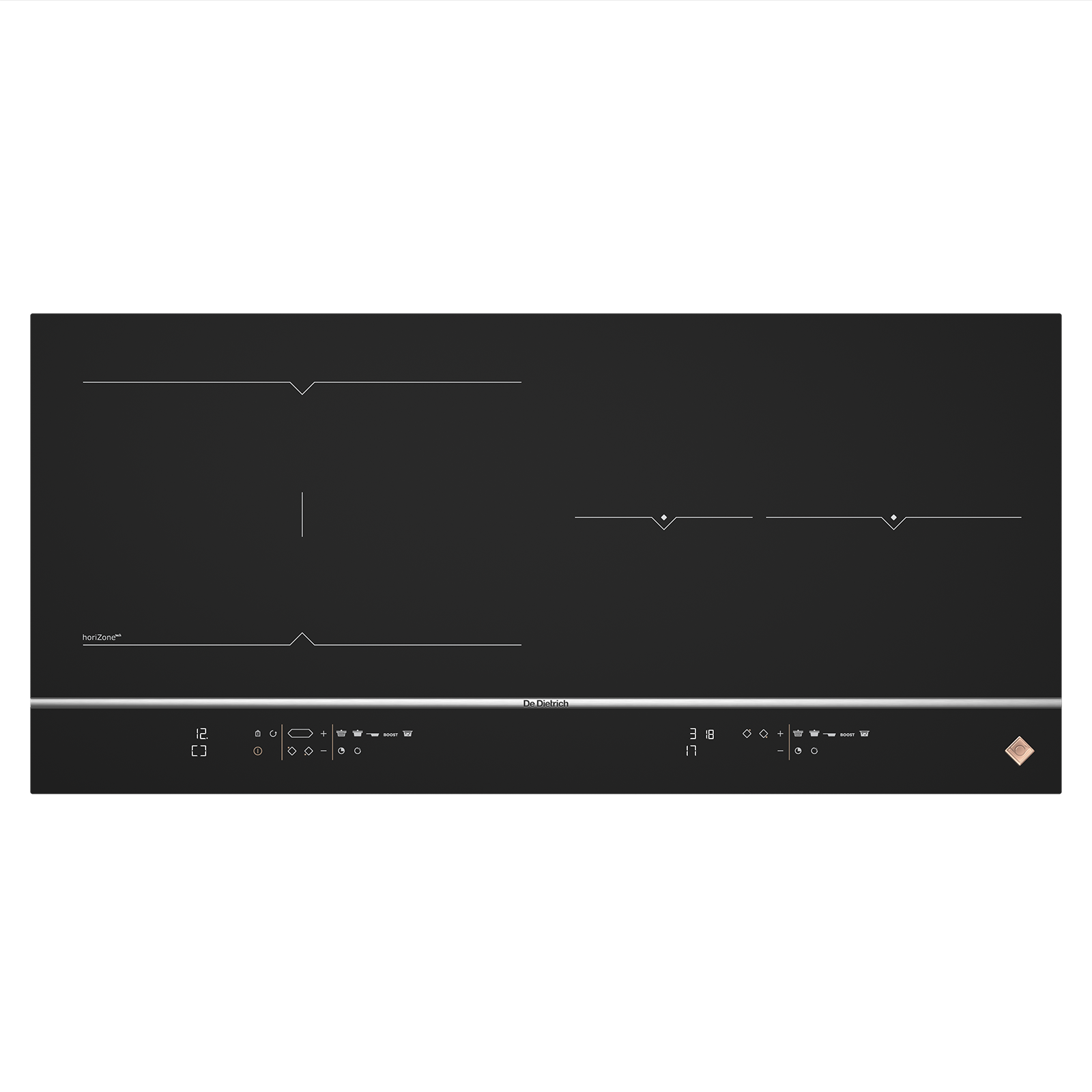

Induction hob DPI7766XP

Fascination
Collection

Make the most of what the modularity provided by the zoneless horiZone cooking space has to offer with two additional induction zones. Be they small or large, wide or oval-shaped - no pan will be able to resist this outstanding, unusually-shaped induction hob!

colors

zoom

compare

Add this product to my favourites

HoriZone

This 40cm x 23cm modular cooking space is the most comprehensive cooking zone on the market. Wide, oval, rectangular... it can accommodate cookware of all shapes and sizes, from 23cm frying pans to 40cm oval casserole dishes.

Four Direct Access Controls for Added Efficiency

With a simple touch on the dedicated button, De Dietrich induction hobs provide you with instant access to power settings for searing, simmering, or keeping your dishes warm.

Timers

Each zone is equipped with its own timer, which you can use to programme the cooking time.

An Exceptionally Talented Keypad

This new De Dietrich induction hob is highly adaptable and flexible when it comes to adjusting its power settings. Its new digital keypad allows you to adjust the power between 1 and 20, with extreme precision and optimum legibility provided by the white LED display.

The Most Exacting of Safety Standards

To completely secure the hob whilst the zones are being cleaned, the Clean Lock feature allows you to temporarily block all commands for one minute. What is more, 10 security levels Pack guarantees you trouble-free cooking at all times

Download :

Schema_Encastrement_DPI7766XP.pdf (555 Ko)

Notice_DPI7766XP.PDF (1 Mo)

Main Specifications

Hob type:

Induction

Width (cm):

Energy:

Electric

Cooking zones

Number of zones:

Heating element location:

Left

Heating element location N°2:

Center

Heating element location N°3:

Center right

Type of heating element :

Induction

Type of heating element N°2:

Induction

Type of heating element N°3:

Induction

Dimensions of the heating element (mm):

horiZonetech 400x230

Dimensions of the heating element N°2 (mm):

160

Dimensions of the heating element N°3 (mm):

230

Maxi power for heater (W):

5000

Maxi power for heater (W) N°2:

2400

Maxi power for heater (W) N°3:

3700

Timer:

Electronic 99 min

Timer N°2:

Electronic 99 min

Timer N°3:

Electronic 99 min

Control panel

Type of control:

Capacitive control

Type of energy regulation:

Electronical

Timer:

Yes

Electric Connections

Hob max electric power input (KW):

7.4

Current (A):

Voltage (V):

220-240

Frequency (Hz):

50/60

Length electrical supply cord (cm):

130

Plug type:

Without

Safety devices

Power Indicator:

Yes

Residual heat Indicators:

Individual

Central locking:

Yes

Securities devices:

Pack 10 safeties

Saucepan detection:

Yes

Dimensions

Dimensions of the packed product HxWxD (mm):

140X1150X610

Built in dimensions WxD (mm):

900X410

Overall dimensions above the working surface HxWxD (mm):

4X930X440

Net weight (kg):

Gross weight (kg):
