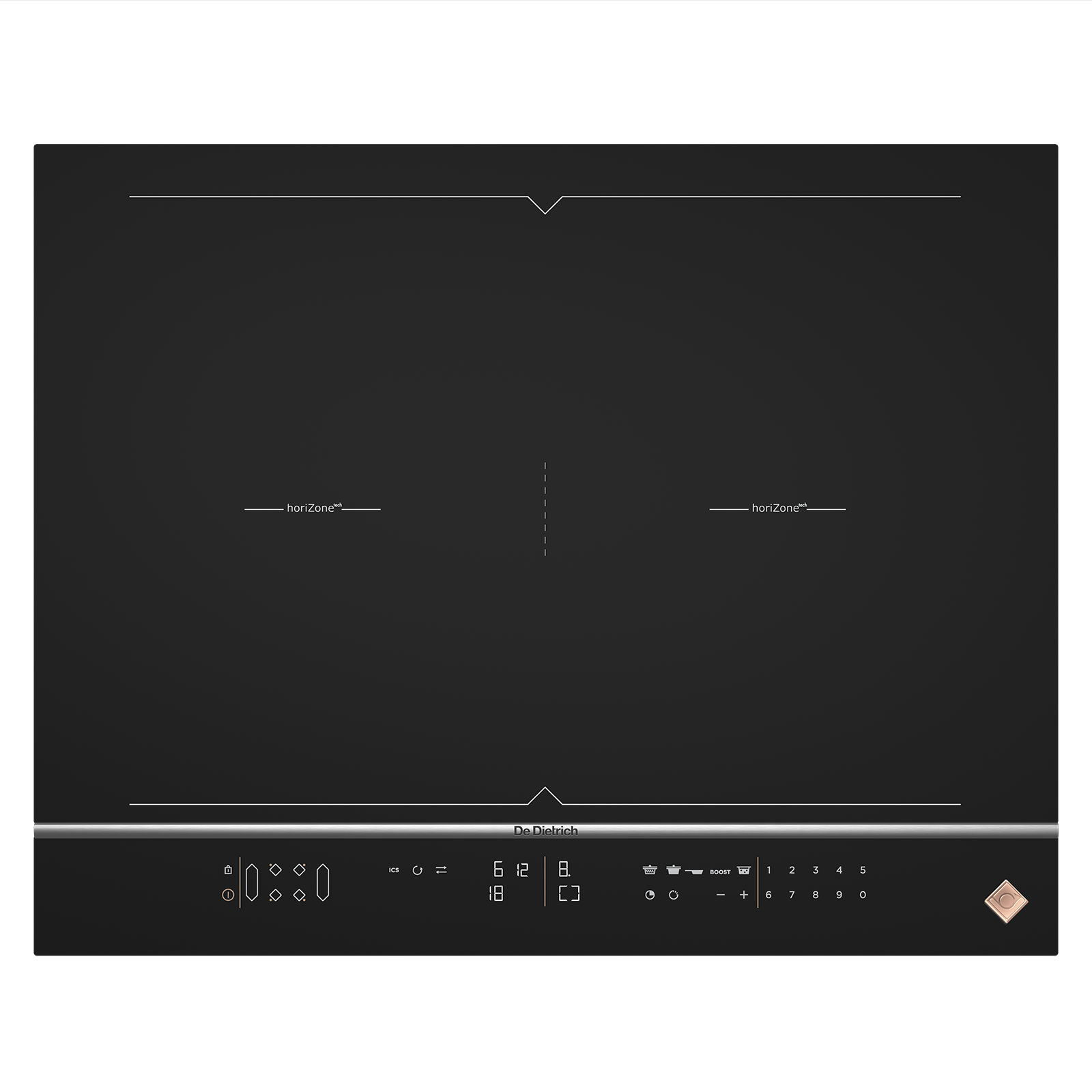

Induction hob DPI7689XP

Fascination
Collection

The two horiZone zoneless cooking areas provided by this 65 cm induction hob offer the user high levels of flexibility. Their versatility, precision and power - from 50 W up to 5,000 W - enable you to cook anything from the smallest, simplest dishes to the most elaborate banquets with the same level of accuracy, and to the same high quality.

colors

zoom

compare

Add this product to my favourites

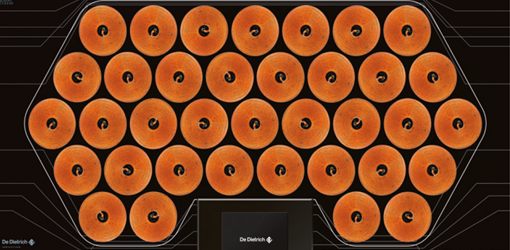

HoriZone

This 40cm x 23cm modular cooking space is the most comprehensive cooking zone on the market. Wide, oval, rectangular... it can accommodate cookware of all shapes and sizes, from 23cm frying pans to 40cm oval casserole dishes.

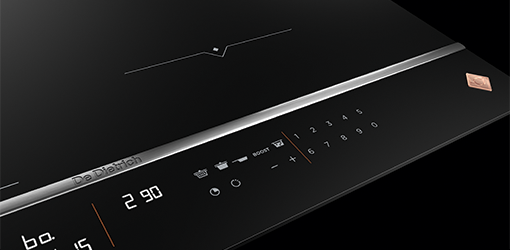

An Exceptionally Talented Keypad

This De Dietrich induction hob is highly adaptable and flexible when it comes to adjusting its power settings. Its new digital keypad allows you to adjust the power between 1 and 20, with extreme precision and optimum legibility provided by the white LED display.

The Most Exacting of Safety Standards

To completely secure the hob whilst the zones are being cleaned, the Clean Lock feature allows you to temporarily block all commands for one minute. What is more, all hobs are fi tted with 10 security levels which guarantees you trouble-free cooking at all times

Download :

Schema_Encastrement_DPI7689XP.pdf (535 Ko)

Notice_DPI7689XP.PDF (799 Ko)

Main Specifications

Hob type:

Induction

Width (cm):

Energy:

Electric

Cooking zones

Number of zones:

Heating element location:

Left

Heating element location N°2:

Right

Type of heating element :

Induction

Type of heating element N°2:

Induction

Dimensions of the heating element (mm):

horiZonetech 400x230

Dimensions of the heating element N°2 (mm):

horiZonetech 400x230

Maxi power for heater (W):

5000

Maxi power for heater (W) N°2:

5000

Timer:

Electronic 99 min

Timer N°2:

Electronic 99 min

Control panel

Type of control:

Capacitive control

Type of energy regulation:

Electronical

Timer:

Yes

Electric Connections

Hob max electric power input (KW):

7.4

Current (A):

Voltage (V):

220-240

Frequency (Hz):

50/60

Length electrical supply cord (cm):

130

Plug type:

Without

Safety devices

Power Indicator:

Yes

Residual heat Indicators:

Individuel

Central locking:

Yes

Securities devices:

Pack 10 safeties

Saucepan detection:

Yes

Dimensions

Dimensions of the packed product HxWxD (mm):

140X750X600

Built in dimensions WxD (mm):

560X490

Dimensions under worktop HxWxD (mm):

56X558X488

Net weight (kg):

11.5

Gross weight (kg):

12.00
