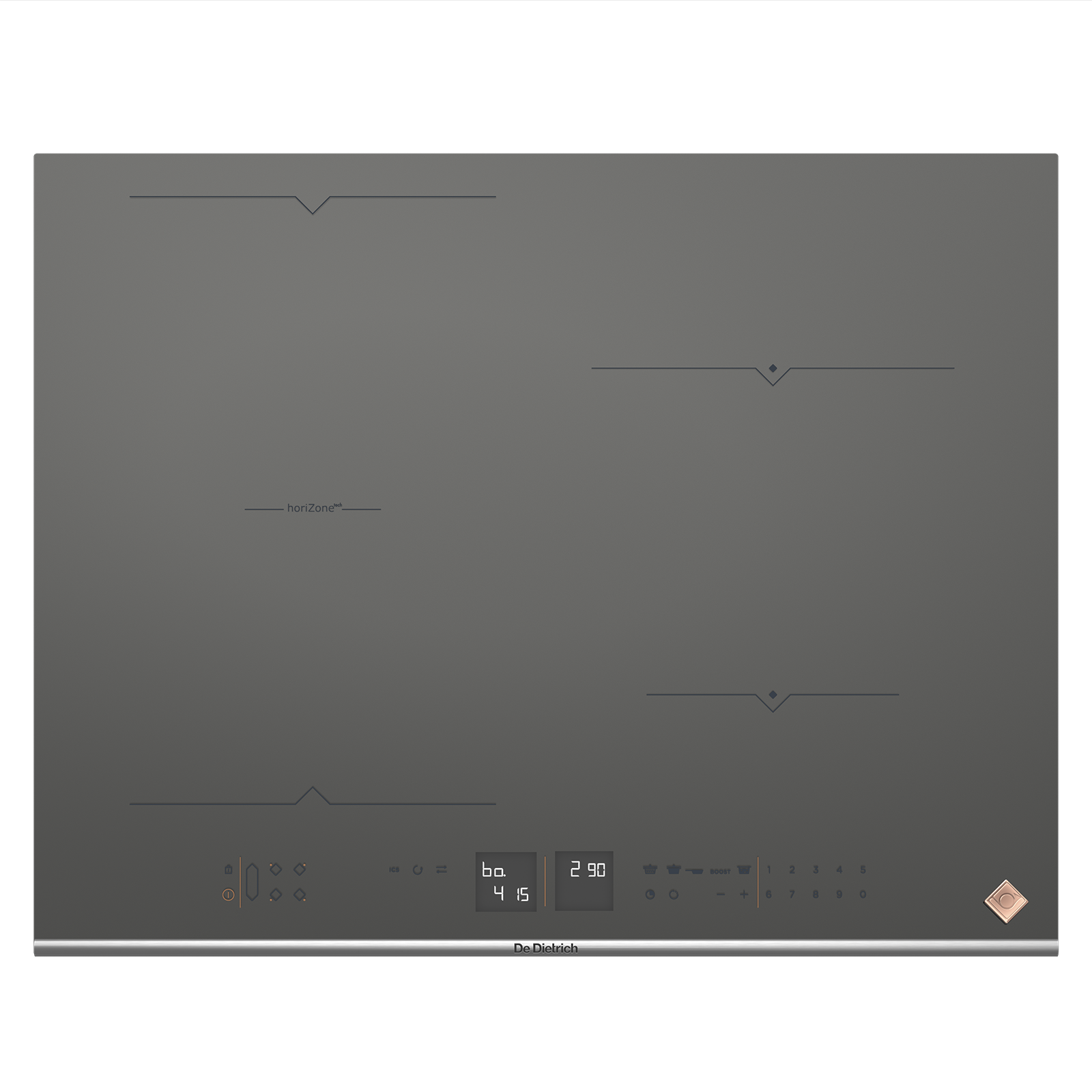

Induction hob DPI7686GP

Fascination
Collection

This induction hob from the Iron Grey collection offers four zones, including a 40 x 23 cm zoneless cooking area. This 5,000 W modular cooking space can adapt to any sort of cookware: from a 23 cm frying pan to a 40 cm oval casserole dish. A dedicated feature can automatically transfer settings assigned to pans when they are moved from one zone to another.

colors

zoom

compare

Add this product to my favourites

HoriZone

This 40cm x 23cm modular cooking space is the most comprehensive cooking zone on the market. Wide, oval, rectangular... it can accommodate cookware of all shapes and sizes, from 23cm frying pans to 40cm oval casserole dishes.

Highly Eficiency and Flexibility

De Dietrich induction technology reaches record power levels, with between 3,700W delivered on traditional zone and 5,000W on horiZone zones. These are offered in varying dimensions and can accommodate both round and oval dishes regardless of size, with an innate capacity for adjustment.

The Most Exacting of Safety Standards

To completely secure the hob whilst the zones are being cleaned, the Clean Lock feature allows you to temporarily block all commands for one minute. What is more, all hobs are fi tted with 10 security levels which guarantees you trouble-free cooking at all times

Download :

Schema_Encastrement_DPI7686GP.pdf (535 Ko)

Notice_DPI7686GP.pdf (799 Ko)

Main Specifications

Hob type:

Induction

Width (cm):

Energy:

Electric

Cooking zones

Number of zones:

Heating element location:

Left

Heating element location N°2:

Front right

Heating element location N°3:

Rear right

Type of heating element :

Induction

Type of heating element N°2:

Induction

Type of heating element N°3:

Induction

Dimensions of the heating element (mm):

horiZonetech 400x230

Dimensions of the heating element N°2 (mm):

160

Dimensions of the heating element N°3 (mm):

230

Maxi power for heater (W):

5000

Maxi power for heater (W) N°2:

2400

Maxi power for heater (W) N°3:

3700

Timer:

Electronic 99 min

Timer N°2:

Electronic 99 min

Timer N°3:

Electronic 99 min

Control panel

Type of control:

Capacitive control

Type of energy regulation:

Electronical

Timer:

Yes

Electric Connections

Hob max electric power input (KW):

7.4

Current (A):

Voltage (V):

220-240

Frequency (Hz):

50/60

Length electrical supply cord (cm):

130

Plug type:

Without

Safety devices

Power Indicator:

Yes

Residual heat Indicators:

Individuel

Central locking:

Yes

Securities devices:

Pack 10 safeties

Saucepan detection:

Yes

Dimensions

Dimensions of the packed product HxWxD (mm):

140X750X600

Built in dimensions WxD (mm):

560X490

Overall dimensions above the working surface HxWxD (mm):

4X650X515

Dimensions under worktop HxWxD (mm):

56X558X488

Net weight (kg):

11.6

Gross weight (kg):

12.2
